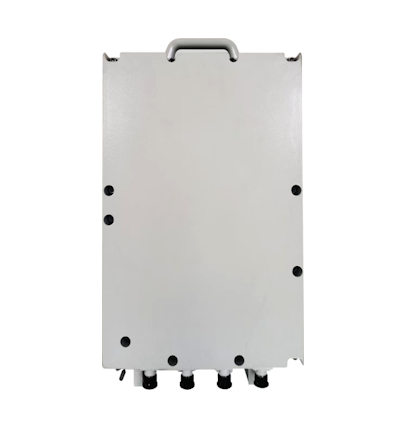

BS6214 adopts the advanced baseband SoC platform, with a carrier grade integrated compact outdoor RF unit structure design. BS6214 is integrated 4G/5G baseband and RF functions. BS6214 is suitable for outdoor 4G/5G hotspot area coverage to provide cost-effective and high-performance 4G/5G wireless network solutions for telecom operators.

Based on SDR platform and support upgrade smoothly

BS6214 is based on the software defined radio (SDR) platform, and can support 4G to 5G and 4G/5G dual-mode evolution through software upgrades on the same hardware platform, improving product consistency and stability and protecting user investments.

High integration design

Adopting integrated design, 4G/5G baseband and RF functions are integrated internal BS6214 for lower power consumption and higher integration. BS6214 supports B3/N3 band, another 4G/5G RF band can be customized.

High RF power and large-scale signal coverage

BS6214 supports 4T4R quad-channel with MIMO technology. The RF power is over 4*40W, which can provide large-scale signal coverage.

All-IP structure and flexible deployment

BS6214 is on all-IP architecture to support flexible deployment. BS6214 has the characteristics of compact structure design, green energy saving, easy installation and maintenance. The Ingress Protection level of BS6214 is IP67 and the operating temperature range is from -40℃ to +55℃, which makes BS6214 can work in all kinds of outdoor application environments.
