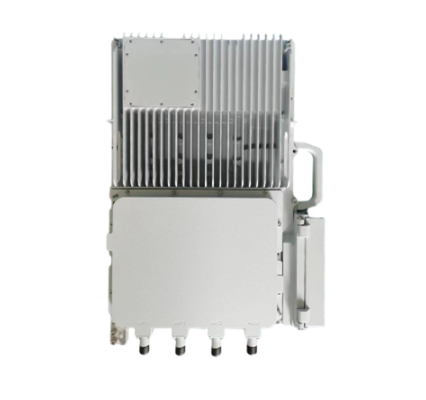

Based on the advanced ARM and SoC 5G RAN platform, the 5G baseband and RF functions together are integrated inside BS5524. The 5G Sub-6G and mmWave dual-mode design can provide super wideband 5G-A superb performance and fast deployment wireless access network solution.

Dual-mode design with high integration

Adopting integrated and dual-mode design, 5G baseband and RF functions, mmWave antenna array are integrated internal BS5524 for lower power consumption and higher integration. BS5524 supports Sub-6G 100MHz and mmWave 400/800MHz carrier bandwidth.

Large capacity and high data throughput

BS5524 supports one 4T4R Sub-6G cell and one 64 antennas array mmWave cell. The peak downlink data throughput can reach more than 7.3Gbps.

All-IP structure and flexible deployment

BS5524 is on all-IP architecture and 10Gbps backhaul interface to support flexible deployment. BS5524 has the characteristics of compact structure design, green energy saving, easy installation and maintenance. The Ingress Protection level of BS5524 is IP67 and the operating temperature range is from -40℃ to +55℃, which makes BS5524 can work in all kinds of outdoor application environments.
