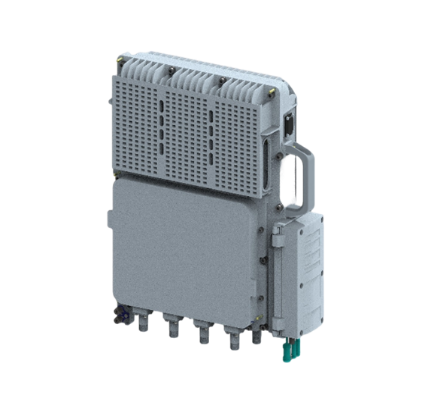

BS5514

Based on the advanced ARM and SoC 5G RAN platform, the 5G baseband and RF functions together are integrated inside BS5514. BS5514 is suitable for outdoor 5G hotspot area coverage to provide cost-effective and high-performance 5G wireless access network solutions for industrial enterprise and technology park.

Dual-mode design with high integration

Adopting integrated design, 5G baseband and RF functions are integrated internal BS5514 for lower power consumption and higher integration. BS5514 support N77/N78/N79 band and 100MHz carrier bandwidth (Sub-6G). In the future BS5514 can support both 5G Sub-6G and mmWave band.

Large capacity and high data throughput

BS5514 supports 4T4R quad-channel with MIMO technology. The RF power is over 4*5W and the peak data throughput can reach more than 1.5Gbps (Sub-6G). BS5514 supports uplink dominant subframe rationing to further enhance the uplink data throughput.

All-IP structure and flexible deployment

BS5514 is on all-IP architecture and 10Gbps backhaul interface to support flexible deployment. BS5514 has the characteristics of compact structure design, green energy saving, easy installation and maintenance. The Ingress Protection level of BS5514 is IP67 and the operating temperature range is from -40℃ to +55℃, which makes BS5514 can work in all kinds of outdoor application environments.
